    Manufacturer :

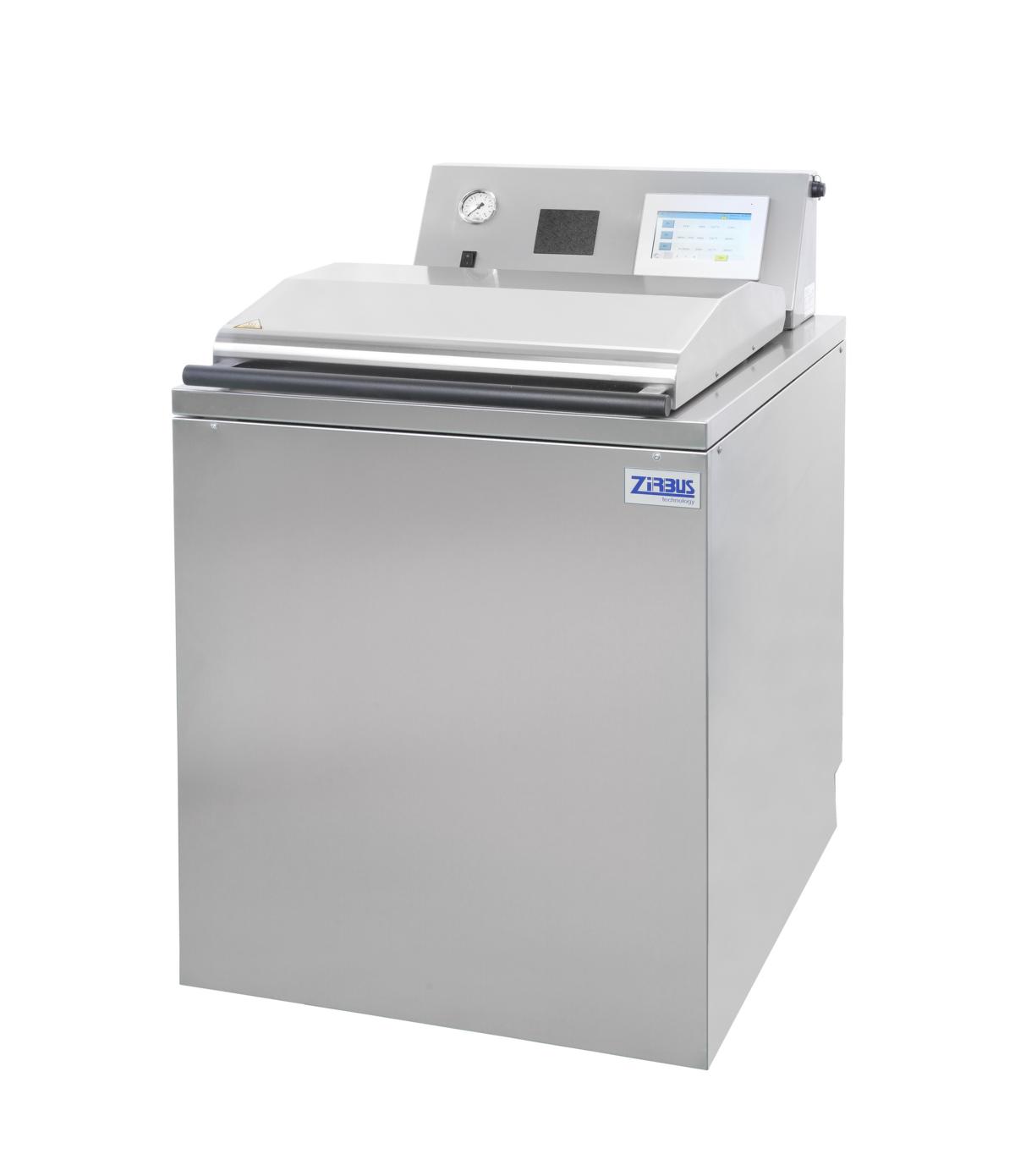

    Laboratory Vertical Autoclave

Laboratory vertical autoclave

with a chamber volume of 80 to 150 litres

Designed taking the most important aspects of sterilization in the laboratory into consideration:

  • Simple, through touchscreen control and low loading heights from 740mm.
  • Safe, through a pressure container with automatic cover seal, manufactured from high-strength and polished 1.4571/ AiSi316Ti stainless steel throughout. Configured for a sterilization temperature of max. 143°C.
  • Sterility, through combined pressure and temperature control, inspected by an independent and certified test laboratory.
  • Efficient, through efficient insulation and a steam generator independent of the sterilization chamber, resulting in short heating up and cooling down phases.
  • Reliable, through the use of high quality components and manufactured in accordance with ISO 9001 quality standard requirements and the German Medical Devices Act (MPG).
  • Flexible and individual through its modular construction. The autoclave can be individually matched to your tasks and upgraded at any time. Also after delivery of the device.

laboratory autoclave steilizer vertical





Vertical autoclaves for your laboratory

Vertical autoclaves with a chamber volume of 80-150 litre

The Laboratory- Vertical- Standing- Autoclaves, short LVSA, are characterized by their low loading height and easy operation.
Our autoclaves are available in four different sizes and can be offered with the following equipment variants:

Basic Lab

Recommended for the sterilization of simple materials or liquids without removal dry.

  • Integrated steam generator
  • SteriTouch control

Dry Lab

Recommended for the sterilization of non-infectious waste bags and materials which require intensive subsequent drying.

  • Integrated steam generator
  • Vacuum pump set
  • SteriTouch control

Quick Lab Basic

Recommended for the sterilization of large quantities of liquids.

  • Integrated steam generator
  • Rapid water recoolingsystem with air-circulating fan
  • SteriTouch control

Quick Lab

Recommended for the sterilization of non-infectious waste bags, large quantities of liquids and materials which require intensive subsequent drying.

  • Integrated steam generator
  • Vacuum pump set
  • Rapid water recoolingsystem with air-circulating fan
  • SteriTouch control

Quick Lab Advanced

Recommended for the sterilization of non-infectious waste bags, large quantities of liquids and materials which require intensive subsequent drying – this also applies to liquids in closed containers.

  • Integrated steam generator
  • Vacuum pump set
  • Rapid water recoolingsystem with air-circulating fan
  • Steam/air mixture method (SAMM)
  • SteriTouch control

Safe Lab

Recommended for operation in the level S2 lab. Recommended for the sterilization of infectious waste bags and materials which require intensive subsequent drying.

  • Integrated steam generator
  • Vacuum pump set
  • Exhaust air filtration EAF
  • SteriTouch control

Complete Lab

Fully equipped laboratory autoclave for operation in the level S2 lab. Recommended for the sterilization of infectious waste bags, large quantities of liquids and materials which require intensive subsequent drying.

  • Integrated steam generator
  • Vacuum pump set
  • Exhaust air filtration EAF
  • Rapid waterrecoolingsystem with air-circulating fan
  • SteriTouch control

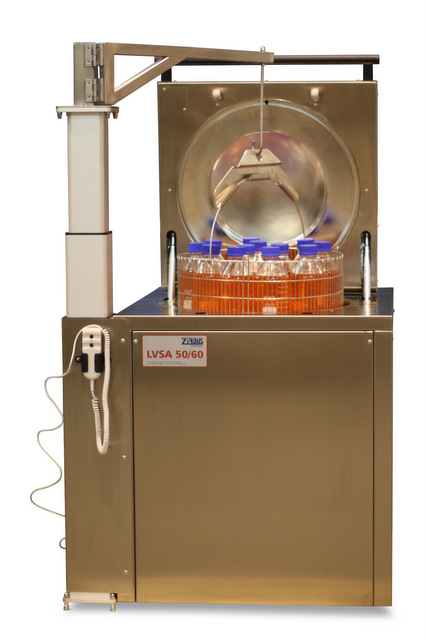

Zirbus vertical autoclave LVSA 50/60

Dimensions

Model LVSA 40/60 LVSA 40/75 LVSA 50/60 LVSA 50/70
Effective space in mm (Ø)400 x (H)620 (Ø)400 x (H)770 (Ø)500x (H)680 (Ø)500x (H)780
Chamber volume in liters 80 96 133 153
Loading height (mm) 740 890 740 890
External diameter in mm (W) 550 x (D) 850 (W) 750 x (D) 950
Heating capacity (kW) 6 9
Electrical connection 380 – 400V, 50/60 Hz, 16 A

Loading capacity

(Specifications partly only possible without loading baskets!)

Medium-Flasks
(Schott)
LVSA 40/60 LVSA 40/75 LVSA 50/60 LVSA 50/70
500ml 2×13 3×13 2×23 3×23
1000ml 2×9 3×9 2×16 3×16
Erlenmeyer flasks LVSA 40/60 LVSA 40/75 LVSA 50/60 LVSA 50/70
500ml 2×8 3×8 2×15 3×15
1000ml 2×5 3×5 2×9 3×9

Description of the individual components

  • Steam generator–  integrated in the housing of the autoclave. Ensures rapid heating and cooling compared to conventional heating systems.
  • Vacuum pump set– for mechanical removal of air and drying in vacuum. Possible methods include single-stage vacuum, fractionated vacuum, constant or pulsating drying under a vacuum.

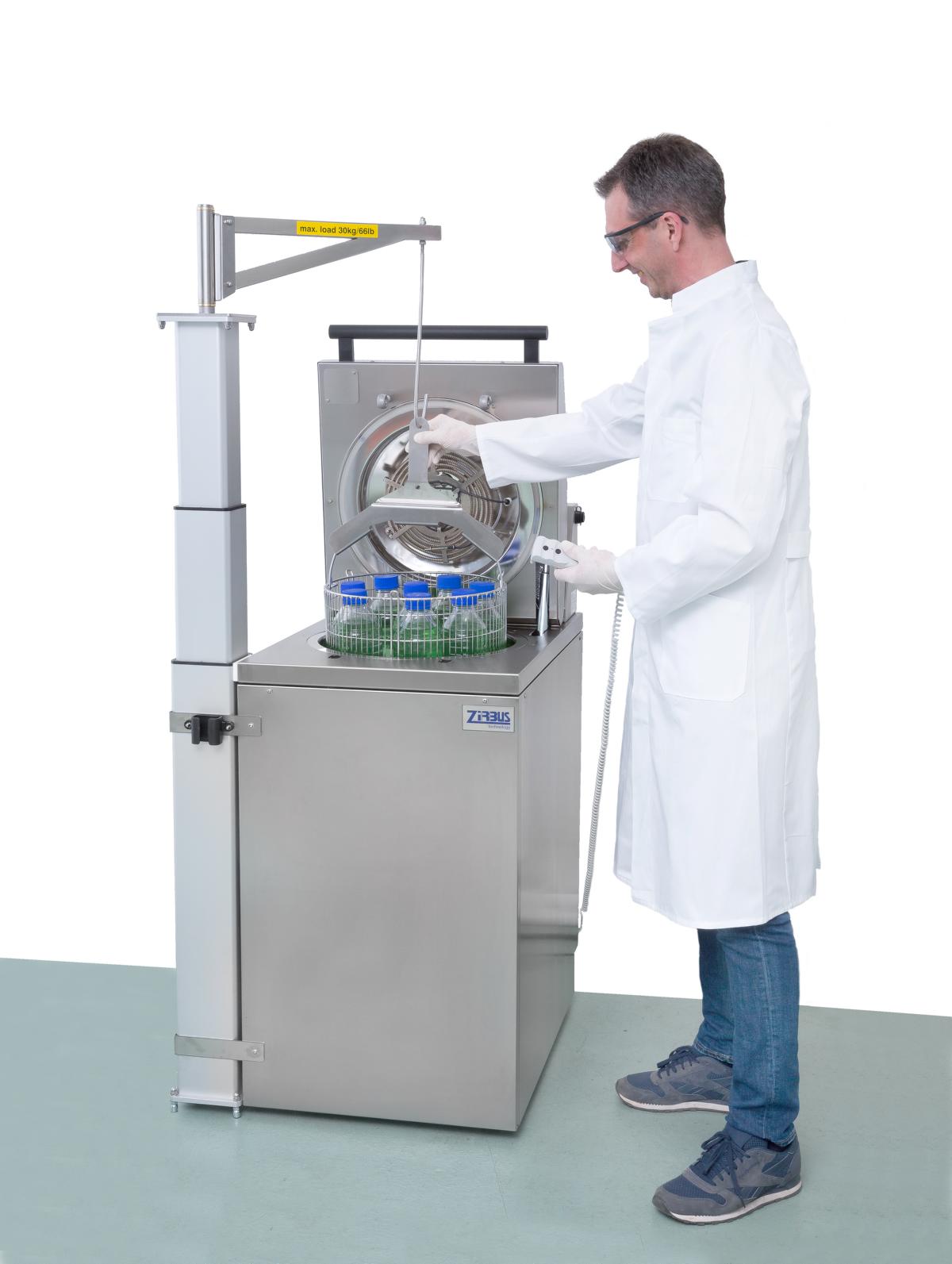

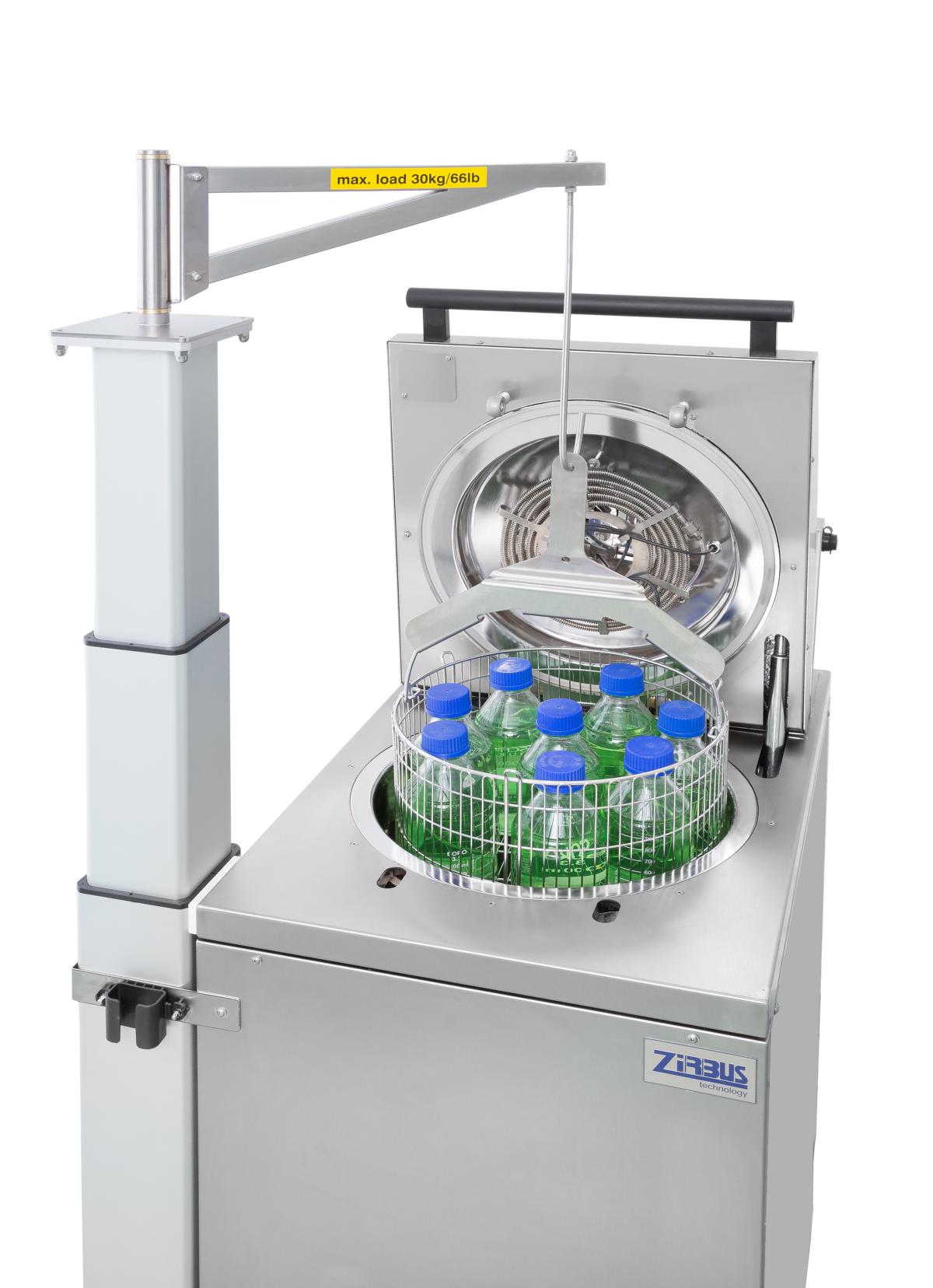

  • Lifting and pivoting mechanism – makes loading and unloading of vertically loaded autoclaves easier. The load capacity is 30 kg.
  • Exhaust air filtration– is stipulated for the sterilization of pathogenic substances in S2/S3 laboratories, with inline condensate sterilization.
  • Touch display (SteriTouch control) – enables simple and intuitive operation at the autoclave. In combination with user-friendly software, the autoclave can be operated quickly but also highly variable and simple.
  • Steam-air mixture method – for the sterilization of tightly closed bottles and pressure-sensitive materials. An additional temperature sensor, air deflectors and a circulating air fan ensure precise temperature control and distribution.
  • Rapid water recooling system with air-circulating fan – allows a shortening of the recooling time by more than 80% compared to the self cooling during sterilization of liquids. This is due to an internal heat exchanger, also known as a “fast cooler”, through which water flows.
  • Accessories – We offer stainless steel sterilisation baskets, pails and containers which fit our various chamber designs.

Continue to the Laboratory-standing-autoclaves with up to 700 litre chamber volume.
