    Manufacturer :

    VACO2

Laboratory Freeze Dryer VaCo-Series

The VaCo series is the entry into freeze drying systems and lyophilisers. Thanks to its modular design, the laboratory freeze dryer is perfectly suited for a wide range of tasks in your laboratory. The units are available with either a -50°C condenser or -80°C condenser and can be offered with the following options:

  • Acrylic glass chamber – incl. base plate and gasket
  • Stainless steel chamber – when using organic solvents
  • Aluminium rack – with heated or unheated shelves
  • Drying trays – suitable for the shelves
  • Chamber cover – on request with vacuum connections (NS 29/32)
  • Dry rack – stainless steel, incl. 3-way valve (NS 29/32)
  • Ampoule adapter– to extend the vacuum valve, for 16 ampoules
  • Closing system – For closing vials under vacuum atmosphere
  • Vacuum control – for setting different vacuum values
  • Vacuum pump – as oil-sealed rotary vane pump or chemical hybrid vacuum pump
  • Control – via 4,3″ colour touch display

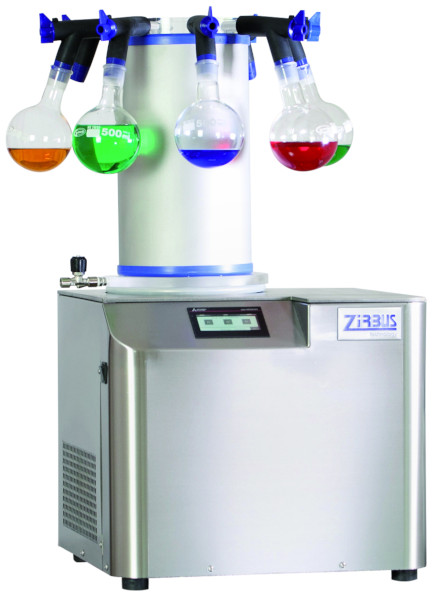

Laboratory freeze dryer VaCo 2

freeze dryer VaCo 2

VaCo 2 with stainless steel chamber and connections in cover.

  VaCo 2, -50°C VaCo 2, -80°C
Dimensions
of condenser
Ø 200 x 180 mm Ø 200 x 180 mm
Volume 5,7 litres 5,7 litres
Temperature
of condenser
-50°C -80°C
Ice capacity 2 kg / 24h 2 kg / 24h
Max. ice
capacity
3 kg 3 kg
Cooling system one- stage, Refrigerant according to the latest F-Gas regulation two-stage, Refrigerant according to the latest F-Gas regulation
Outer
dimensions (wxhxd)
490 x 450 x 470 mm 490 x 450 x 470 mm
Weight of basic unit 45kg 58kg
Electical connection 230 V, 50/60 Hz 230 V, 50/60 Hz
